ISO-F Blank Nonrotatable Flange

Part Number: ISO-63-000N

Price: $101.00

Quantity:

Features

Contact us at 800-824-4166 if you can't find exactly what you need
ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
Many others available
Most common standard lengths and sizes listed

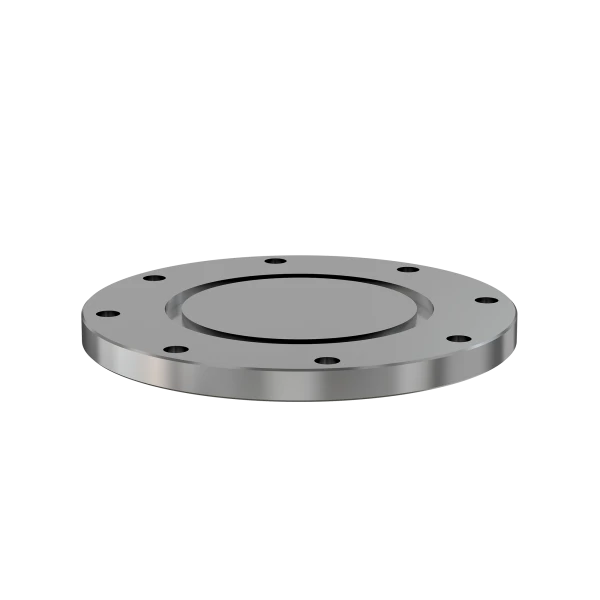

ISO-63 Blank Nonrotatable Flange

Technical Resources

Specifications

Flange Size: DN 63 ISO-F
Type: Blank
Material: 304 Stainless
Bore: Blank
Thickness: 0.470"
Bolt Circle: 4.33"
Bolt Hole Diameter: 0.359"
# Bolt Holes: 4
Vacuum Range: FKM: 1 · 10^-8 mbar to 1 bar
Metal seal: 1 · 10^-10 mbar to 1 bar
Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -270 °C to 150 °C
Weight: 2.7 lbs

Dim A: 5.12"
Dim B: 0.470"
Dim C: Blank
Dim F: 4.33"
Dim G: 0.359"

Installation Hardware
