ISO-F Blank Nonrotatable Flange

Part Number: ISO-320-000N
Price: $897.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Many others available
  • Most common standard lengths and sizes listed
ISO-320 Blank Nonrotatable Flange
Technical Resources
Specifications
  • Flange Size: DN 320 ISO-F
  • Type: Blank
  • Material: 304 Stainless
  • Bore: Blank
  • Thickness: 0.780"
  • Bolt Circle: 15.6"
  • Bolt Hole Diameter: 0.551"
  • # Bolt Holes: 12
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 49 lbs

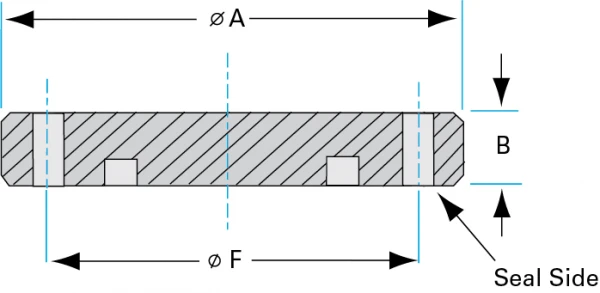

ISO-Nonrotatable-Fastener-Flanges-Dia-A
Imperial Units
Dim A: 16.7"
Dim B: 0.780"
Dim C: Blank
Dim F: 15.6"
Dim G: 0.551"

Installation Hardware
