CF Rotatable Flange 800-600RT

Part Number: 800-600RT

Price: $241.00
Quantity:


Features
Contact us at 800-824-4166 if you can't find exactly what you need
Most popular sizes and types listed
Rotatable flanges make component alignment easy
The CF flange system is ideal for UHV system construction
Specifications
Flange Size: DN 160 CF (8" OD)
Type: Weld Flange
Alignment: Rotatable
Feature: Tapped
Material: 304 Stainless
Bore: 5.88"
Thickness: 0.937"
Bolt Circle: 7.13"
Bolt Hole Dia / Thread: 5/16-24
# Bolt Holes: 20
Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
Metal seal: 1 · 10-13 mbar to 1 bar
Manufacturer: Pfeiffer Vacuum+Fab Solutions
Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -200 °C to 450 °C
Weight: 5.8 lbs
8" OD X 6" ID Rotatable Tapped CF Flange Kit
Technical Resources

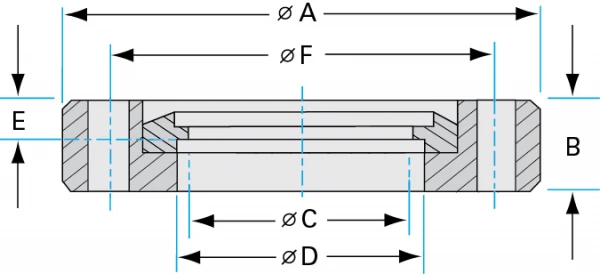

CF-Flanges-8-Inch-Dia-D
Imperial Units
Dim A: 7.97"
Dim B: 0.937"
Dim C: 5.88"
Dim D: 6.02"
Dim E: 0.500"
Dim F: 7.13"
Dim G: 5/16-24

Benefits of Choosing Pfeiffer Vacuum+Fab Solutions

  • Dedicated Sales Support — Speak directly with a real person at 800-824-4166.
  • ​​Fast Quote Turnaround
  • 60+ Years of Industry Experience
  • Competitive Pricing and Reliable Service

Installation Hardware
