CF Blank Rotatable Flange

Part Number: 675-000R
Price: $115.50
Quantity:


Features
  • The CF flange system is ideal for UHV system construction
  • Rotatable flanges make component alignment easy
  • Most popular sizes and types listed
  • Contact us at 800-824-4166 if you can't find exactly what you need
6.75" OD Blank Rotatable CF Flange Kit
Technical Resources
Specifications
  • Flange Size: DN 125 CF (6.75" OD)
  • Type: Weld Flange
  • Alignment: Rotatable
  • Feature: Through hole
  • Material: 304 Stainless
  • Bore: Blank
  • Thickness: 0.844"
  • Bolt Circle: 5.97"
  • Bolt Hole Dia / Thread: 0.332"
  • # Bolt Holes: 18
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 8.3 lbs

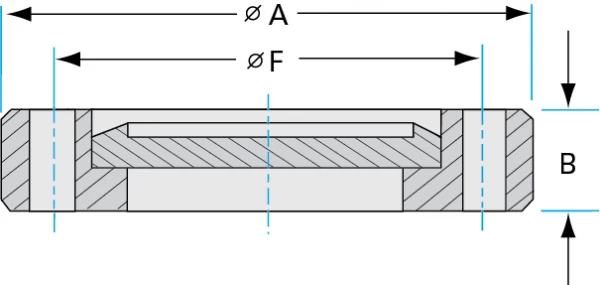

CF-Flanges-6-3-and-4-Inch-Dia-C
Imperial Units
Dim A: 6.73"
Dim B: 0.844"
Dim C: Blank
Dim F: 5.97"
Dim G: 0.332"
