CF Rotatable Flange

Part Number: 212-100RT
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Most popular sizes and types listed
  • Rotatable flanges make component alignment easy
  • The CF flange system is ideal for UHV system construction
2.12" OD X 1" ID Rotatable Tapped CF Flange Kit
Technical Resources
Specifications
  • Flange Size: DN 25 CF (2.12" OD)
  • Type: Weld Flange
  • Alignment: Rotatable
  • Feature: Tapped
  • Material: 304 Stainless
  • Bore: 0.938"
  • Thickness: 0.469"
  • Bolt Circle: 1.63"
  • Bolt Hole Dia / Thread: 1/4-28
  • # Bolt Holes: 4
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 0.36 lbs

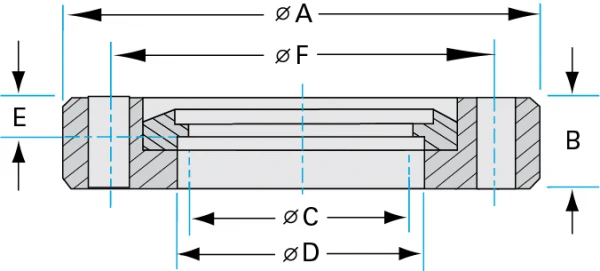

CF-Flanges-2-1-and-8-Inch-Dia-D
Imperial Units
Dim A: 2.12"
Dim B: 0.469"
Dim C: 0.938"
Dim D: 1.01"
Dim E: 0.167"
Dim F: 1.63"
Dim G: 1/4-28
