CF Nonrotatable Flange 212-100NT
Part Number: 212-100NT
Features
- Contact us at 800-824-4166 if you can't find exactly what you need
- Most popular sizes and types listed
- Rotatable flanges make component alignment easy
- The CF flange system is ideal for UHV system construction
2.12" OD X 1" ID Nonrotatable Tapped CF Flange
Specifications
- Flange Size: DN 25 CF (2.12" OD)
- Type: Weld Flange
- Alignment: Non-rotatable
- Feature: Tapped
- Material: 304 Stainless
- Bore: 0.938"
- Thickness: 0.469"
- Bolt Circle: 1.63"
- Bolt Hole Dia / Thread: 1/4-28
- # Bolt Holes: 4
- Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
Metal seal: 1 · 10-13 mbar to 1 bar
- Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -200 °C to 450 °C
- Weight: 0.36 lbs

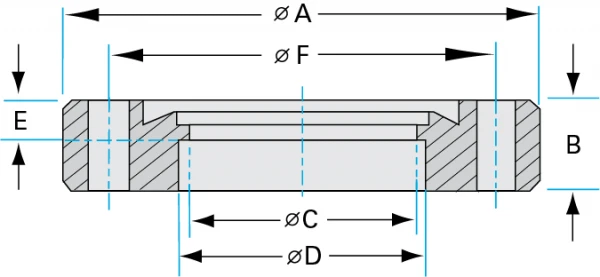

Imperial Units
Dim A: 2.12"
Dim B: 0.469"
Dim C: 0.938"
Dim D: 1.01"
Dim E: 0.167"
Dim F: 1.63"
Dim G: 1/4-28
Metric Units
Dim A: 53.8 mm
Dim B: 11.91 mm
Dim C: 23.83 mm
Dim D: 25.7 mm
Dim E: 4.24 mm
Dim F: 41.4 mm
Dim G: 1/4-28
