CF Nonrotatable Flange

Part Number: 1650-1400NT

List Price: $1,765.00

Price: $1,765.00

Quantity:

Features

16.50" OD X 14" ID Nonrotatable Tapped CF Flange

Technical Resources

Specifications

Flange Size: DN 350 CF (16.5" OD)
Type: Weld Flange
Alignment: Non-rotatable
Feature: Tapped
Material: 304 Stainless
Bore: 13.8"
Thickness: 1.13"
Bolt Circle: 15.3"
Bolt Hole Dia / Thread: 3/8-24
# Bolt Holes: 36
Vacuum Range: FKM: 1 · 10^-8 mbar to 1 bar
Metal seal: 1 · 10^-13 mbar to 1 bar
Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -200 °C to 450 °C
Weight: 19.9 lbs

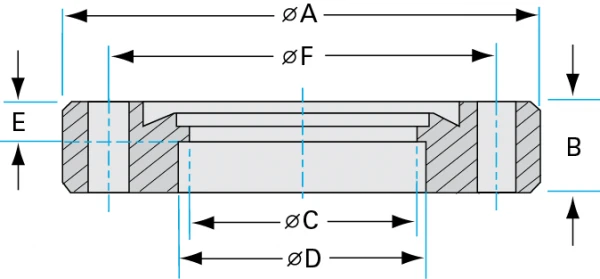

Dim A: 16.5"
Dim B: 1.13"
Dim C: 13.8"
Dim D: 14.0"
Dim E: 0.500"
Dim F: 15.3"
Dim G: 3/8-24

Installation Hardware
