Click to enlarge
View CAD

CF Blank Nonrotatable Flange

Part Number: 1450-000N
Price: $873.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Most popular sizes and types listed
  • Rotatable flanges make component alignment easy
  • The CF flange system is ideal for UHV system construction
14.50" OD Blank Nonrotatable CF Flange
Technical Resources
Specifications
  • Flange Size: DN 300 CF (14.5" OD)
  • Type: Weld Flange
  • Alignment: Non-rotatable
  • Feature: Through hole
  • Material: 304 Stainless
  • Bore: Blank
  • Thickness: 1.13"
  • Bolt Circle: 13.3"
  • Bolt Hole Dia / Thread: 0.390"
  • # Bolt Holes: 32
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 52 lbs

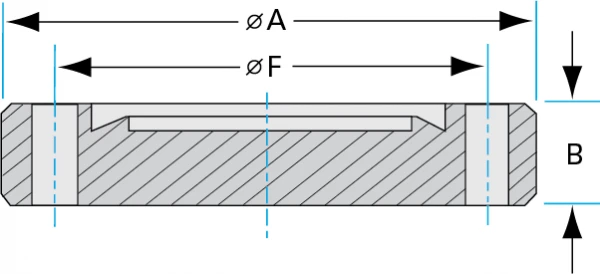

CF-Flanges-14-1-and-2-Inches-Dia-A
Imperial Units
Dim A: 14.5"
Dim B: 1.13"
Dim C: Blank
Dim F: 13.3"
Dim G: 0.390"
