Home / Vacuum Flanges & Fittings / Bored & Blank Flanges / ConFlat (CF) Bored & Blank Flanges / CF Blank Rotatable Flange
Click to enlarge
View CAD

CF Blank Rotatable Flange

Part Number: 1400-000R
List Price: $1,392.00
List Price: $1,392.00
Price: $1,392.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Most popular sizes and types listed
  • Rotatable flanges make component alignment easy
  • The CF flange system is ideal for UHV system construction
14" OD Blank Rotatable CF Flange Kit
Technical Resources
Specifications
  • Flange Size: DN 300 CF (14" OD)
  • Type: Weld Flange
  • Alignment: Rotatable
  • Feature: Through hole
  • Material: 304 Stainless
  • Bore: Blank
  • Thickness: 1.13"
  • Bolt Circle: 12.8"
  • Bolt Hole Dia / Thread: 0.390"
  • # Bolt Holes: 30
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 49 lbs

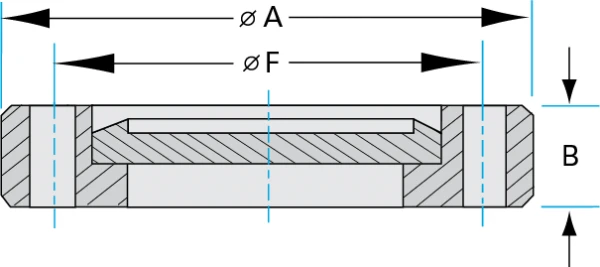

CF-Flanges-14-Inch-Dia-C
Imperial Units
Dim A: 14.0"
Dim B: 1.13"
Dim C: Blank
Dim F: 12.8"
Dim G: 0.390"

Installation Hardware
