CF Blank Nonrotatable Flange w/ Neck

Part Number: 133-075RK

Price: $16.25

Quantity:

Features

1.33" OD X 0.75" ID Rotatable CF Flange Kit with Neck

Technical Resources

Specifications

Flange Size: DN 16 CF (1.33" OD)
Type: Flange w/Weld Neck
Alignment: Rotatable
Feature: Through hole
Material: 304 Stainless
Bore: 0.625"
Thickness: 0.500"
Bolt Circle: 1.06"
Bolt Hole Dia / Thread: 0.172"
# Bolt Holes: 6
Vacuum Range: FKM: 1 · 10^-8 mbar to 1 bar
Metal seal: 1 · 10^-13 mbar to 1 bar
Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -200 °C to 450 °C
Weight: 0.136 lbs

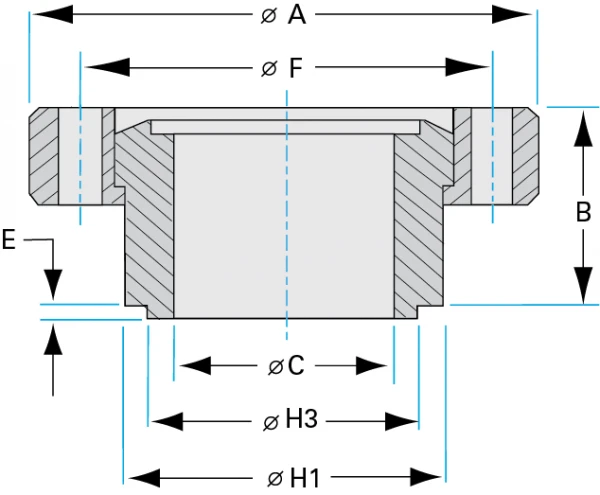

Dim A: 1.33"
Dim B: 0.500"
Dim C: 0.625"
Dim F: 1.06"
Dim G: 0.172"
Dim H-1: 0.750"
Dim H-3: 0.627"

Installation Hardware
