CF Blank Nonrotatable Flange w/ Neck

Part Number: 133-075NK
Price: $14.50
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Most popular sizes and types listed
  • Rotatable flanges make component alignment easy
  • The CF flange system is ideal for UHV system construction
1.33" OD X 0.75" ID Nonrotatable CF Flange with Neck
Technical Resources
Specifications
  • Flange Size: DN 16 CF (1.33" OD)
  • Type: Flange w/Weld Neck
  • Alignment: Non-rotatable
  • Feature: Through hole
  • Material: 304 Stainless
  • Bore: 0.625"
  • Thickness: 0.500"
  • Bolt Circle: 1.06"
  • Bolt Hole Dia / Thread: 0.172"
  • # Bolt Holes: 6
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 0.136 lbs

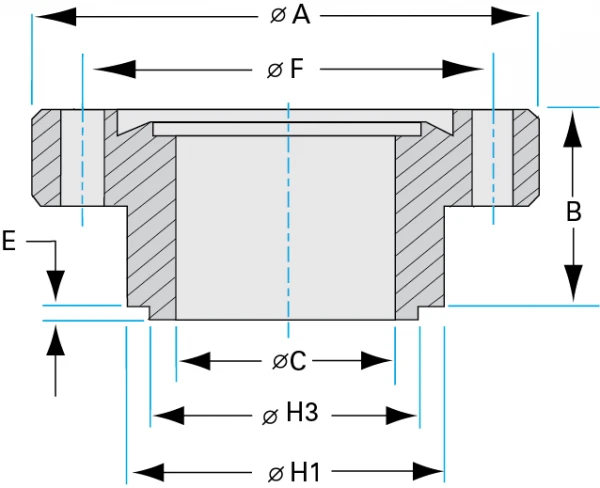

CF-Mini-Flanges-Dia-G
Imperial Units
Dim A: 1.33"
Dim B: 0.500"
Dim C: 0.625"
Dim F: 1.06"
Dim G: 0.172"
Dim H-1: 0.750"
Dim H-3: 0.672"

Installation Hardware
