CF Blank Nonrotatable Flange w/ Neck 133-075NBK
Part Number: 133-075NBK
Features
- Contact us at 800-824-4166 if you can't find exactly what you need
- Most popular sizes and types listed
- Rotatable flanges make component alignment easy
- The CF flange system is ideal for UHV system construction
1.33" OD X 0.75" ID Nonrotatable CF Flange with Neck, no Weldprep
Specifications
- Flange Size: DN 16 CF (1.33" OD)
- Type: Flange w/Weld Neck
- Alignment: Non-rotatable
- Feature: Through hole
- Material: 304 Stainless
- Bore: 0.625"
- Thickness: 0.500"
- Bolt Circle: 1.06"
- Bolt Hole Dia / Thread: 0.172"
- # Bolt Holes: 6
- Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
Metal seal: 1 · 10-13 mbar to 1 bar
- Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -200 °C to 450 °C
- Weight: 0.136 lbs

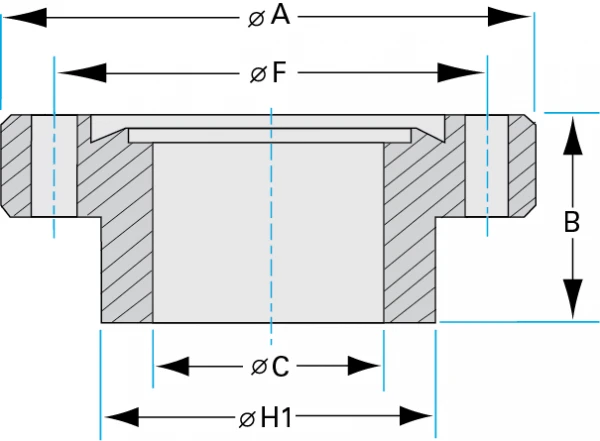

Imperial Units
Dim A: 1.33"
Dim B: 0.500"
Dim C: 0.625"
Dim F: 1.06"
Dim G: 0.172"
Dim H-1: 0.750"
Metric Units
Dim A: 33.8 mm
Dim B: 12.7 mm
Dim C: 15.88 mm
Dim F: 26.9 mm
Dim G: 4.37 mm
Dim H-1: 19.05 mm
