CF Rotatable Flange

Part Number: 1325-1000RT
Price: $1,238.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Most popular sizes and types listed
  • Rotatable flanges make component alignment easy
  • The CF flange system is ideal for UHV system construction
13.25" OD X 10" ID Rotatable Tapped CF Flange
Technical Resources
Specifications
  • Flange Size: DN 275 CF (13.25" OD)
  • Type: Weld Flange
  • Alignment: Rotatable
  • Feature: Tapped
  • Material: 304 Stainless
  • Bore: 9.88"
  • Thickness: 1.13"
  • Bolt Circle: 12.1"
  • Bolt Hole Dia / Thread: 3/8-24
  • # Bolt Holes: 30
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 18.9 lbs

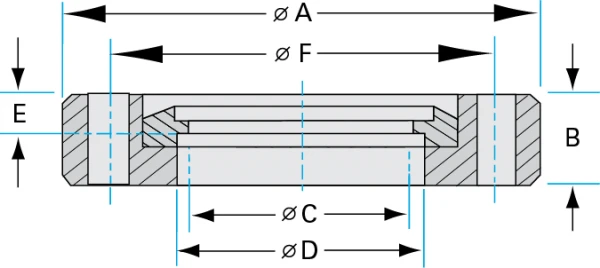

CF-Flanges-13-1-and-4-Inch-Dia-D
Imperial Units
Dim A: 13.3"
Dim B: 1.13"
Dim C: 9.88"
Dim D: 10.0"
Dim E: 0.500"
Dim F: 12.1"
Dim G: 3/8-24
