CF Blank Rotatable Flange

Part Number: 1325-000R
List Price: $1,156.00
List Price: $1,156.00
Price: $1,156.00
Quantity:


Features
  • The CF flange system is ideal for UHV system construction
  • Rotatable flanges make component alignment easy
  • Most popular sizes and types listed
  • Contact us at 800-824-4166 if you can't find exactly what you need
13.25" OD Blank Rotatable CF Flange
Technical Resources
Specifications
  • Flange Size: DN 275 CF (13.25" OD)
  • Type: Weld Flange
  • Alignment: Rotatable
  • Feature: Through hole
  • Material: 304 Stainless
  • Bore: Blank
  • Thickness: 1.13"
  • Bolt Circle: 12.1"
  • Bolt Hole Dia / Thread: 0.390"
  • # Bolt Holes: 30
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 44 lbs

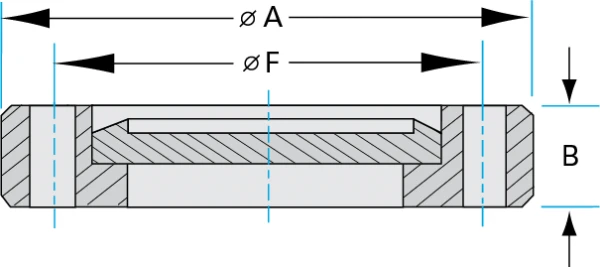

CF-Flanges-13-1-and-4-Inch-Dia-C
Imperial Units
Dim A: 13.3"
Dim B: 1.13"
Dim C: Blank
Dim F: 12.1"
Dim G: 0.390"
