CF Blank Nonrotatable Flange

Part Number: 1325-000NT

Price: $1,187.00

Quantity:

Features

13.25" OD Blank Nonrotatable Tapped CF Flange

Technical Resources

Specifications

Flange Size: DN 275 CF (13.25" OD)
Type: Weld Flange
Alignment: Non-rotatable
Feature: Tapped
Material: 304 Stainless
Bore: Blank
Thickness: 1.13"
Bolt Circle: 12.1"
Bolt Hole Dia / Thread: 3/8-24
# Bolt Holes: 30
Vacuum Range: FKM: 1 · 10^-8 mbar to 1 bar
Metal seal: 1 · 10^-13 mbar to 1 bar
Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -200 °C to 450 °C
Weight: 44 lbs

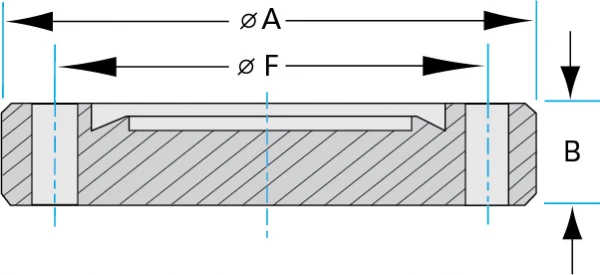

Dim A: 13.3"
Dim B: 1.13"
Dim C: Blank
Dim F: 12.1"
Dim G: 3/8-24
