ASA Blank Nonrotatable Flange

Part Number: ASA-11-000N-G
Price: $420.00
Quantity:


Features
  • All products are available with both genders or a combination
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • One each flat and grooved flange is needed to complete a connection
11" Blank Nonrotatable ASA Flange w/Groove
Technical Resources
Specifications
  • Flange Size: DN 6 (11" OD)
  • Type: Non-rotatable
  • Gender: with Groove
  • Material: 304 Stainless
  • Bore: Blank
  • Thickness: 0.750"
  • Bolt Circle: 9.50"
  • Bolt Hole Diameter: 0.812"
  • # Bolt Holes: 8
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
  • Weight: 19.7 lbs

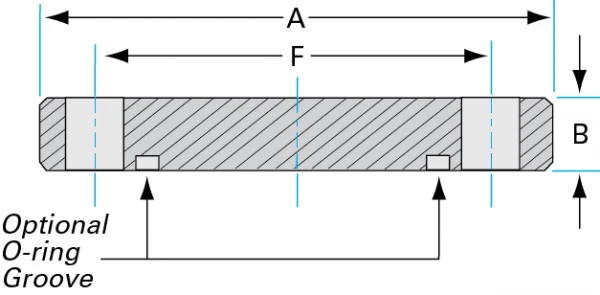

ASA-Flanges-11-to-16-Dia-1
Imperial Units
Dim A: 11.0"
Dim B: 0.750"
Dim C: Blank
Dim F: 9.50"
Dim G: 0.812"

Installation Hardware
