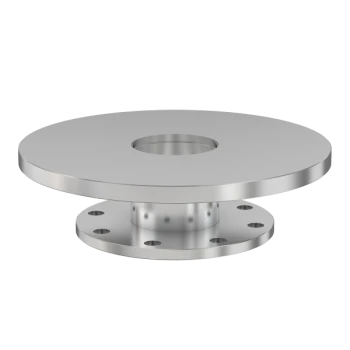

Baseplate for Bell Jar

Part Number: BP-1800-EP
Quantity:

18" Baseplate for Bell Jar, Electropolished Finish
Specifications
  • Product Type: Baseplate
  • For use with bell jar or
    feedthrough collar size
    :     18" OD
  • Base Flange Size: 20" OD
  • Finish: Electropolished
  • Material: 304 SS
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 200 °C
Baseplate Dia _ 2023a
Imperial Units
Dim B: 20"
Dim C: 7.76"
