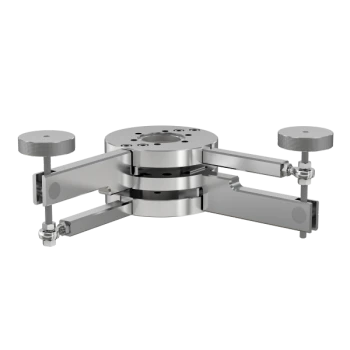

Alignment Gimbals

Part Number: AG-275-150-M2
Quantity:

Alignment Gimbal, Micrometer adjustment on both axes
Technical Resources
Specifications
  • Alignment Gimbal Type: Manual XY Adjustment
  • Flange Size / Type: DN 40 CF (2.75" OD)
  • Nominal ID: 1-1/2"
  • Orientation: Any
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: 20 °C to 200 °C
  • Flange Material: 304 Stainless
  • Adjustment Range: ±5° XY
  • Weight: 17 lbs
