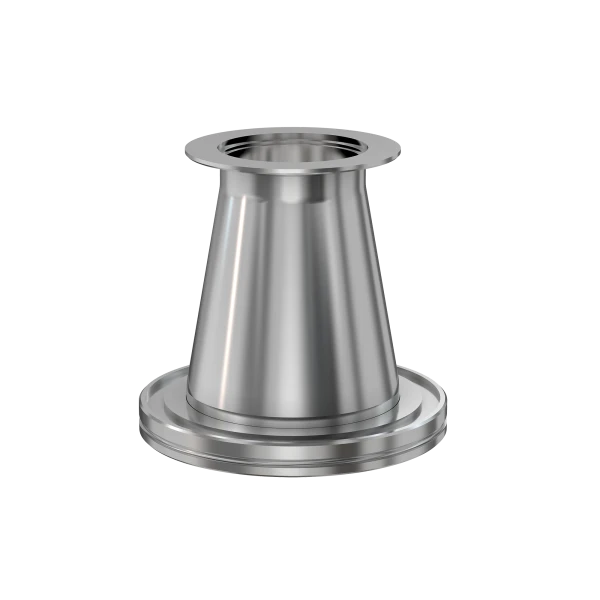

ISO-KF to ISO-K Conical Adapter Nipple

Part Number: ANC-NW-50-ISO-80
Price: $108.05
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
NW-50 to ISO-80 OF Conical Adapter Nipple
Technical Resources
Specifications
  • Flange 1: DN 50 ISO-KF
  • Adapter Type: Conical Adapter
  • Flange 2: DN 80 ISO-K
  • Material: 304 Stainless
  • Tube OD: 2"
  • Tube OD 2: 3"
  • Port Length: 4.03"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 1.6 lbs
NW-to-ISO-Conical-Adapter-Nipples-Dia
Imperial Units
Dim A: 4.03"
