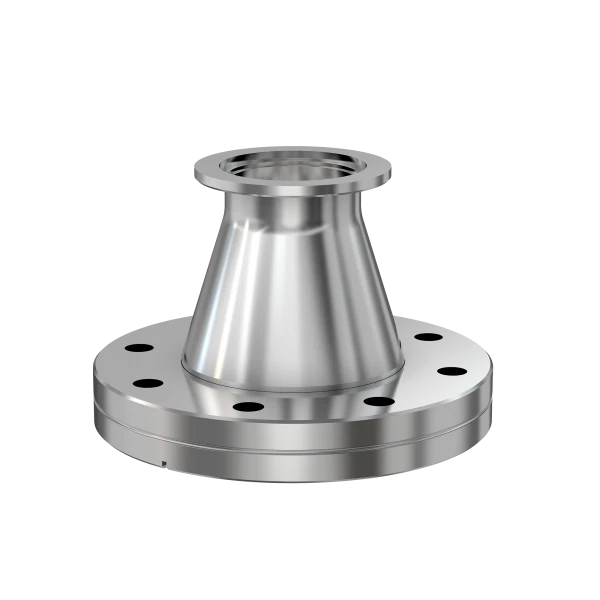

ISO-KF to CF Conical Adapter Nipple

Part Number: ANC-NW-25-275
Price: $94.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
NW-25 to 2.75" OD CF Conical Adapter Nipple
Technical Resources
Specifications
  • Flange 1: DN 25 ISO-KF
  • Adapter Type: Conical Adapter
  • Flange 2: DN 40 CF (2.75" OD)
  • Material: 304 Stainless
  • Tube OD: 1"
  • Tube OD 2: 1-1/2"
  • Port Length: 2.73"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 0.73 lbs
NW-to-CF-Conical-Adapter-Nipples-Dia
Imperial Units
Dim A: 2.73"

Installation Hardware
