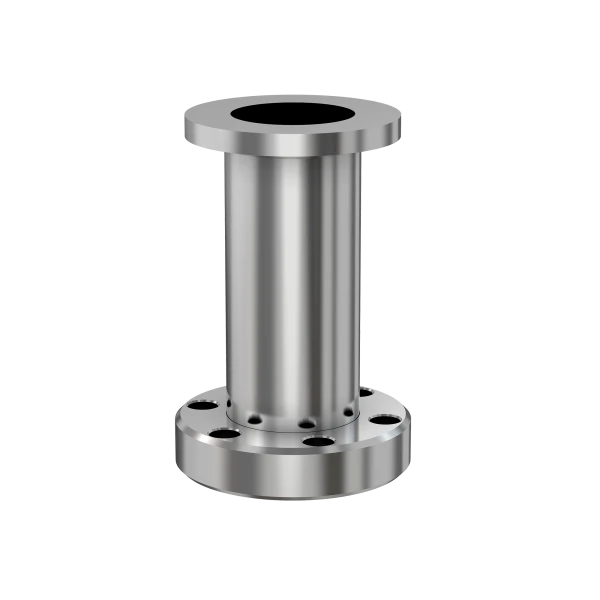

ISO-KF to CF Straight Adapter Nipple

Part Number: AN-NW-25-212
Price: $84.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
NW-25 to 2.12" OD CF Straight Adapter Nipple
Technical Resources
Specifications
  • Flange 1: DN 25 ISO-KF
  • Adapter Type: Straight Adapter
  • Flange 2: DN 25 CF (2.12" OD)
  • Material: 304 Stainless
  • Tube OD: 1"
  • Port Length: 2.00"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 0.49 lbs
NW-to-CF-Adapters-Nipples-Dia
Imperial Units
Dim A: 2.00"

Installation Hardware
