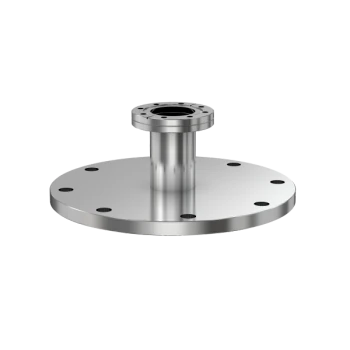

CF to ASA Straight Adapter Nipple

Part Number: AN-800-ASA-11
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
8" OD CF to 11" OD ASA Straight Adapter Nipple
Technical Resources
Specifications
  • Flange 1: DN 160 CF (8" OD)
  • Adapter Type: Straight Adapter
  • Flange 2: DN 6 (11" OD)
  • Material: 304 Stainless
  • Tube OD: 6"
  • Port Length: 5.00"
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
  • Weight: 20.5 lbs

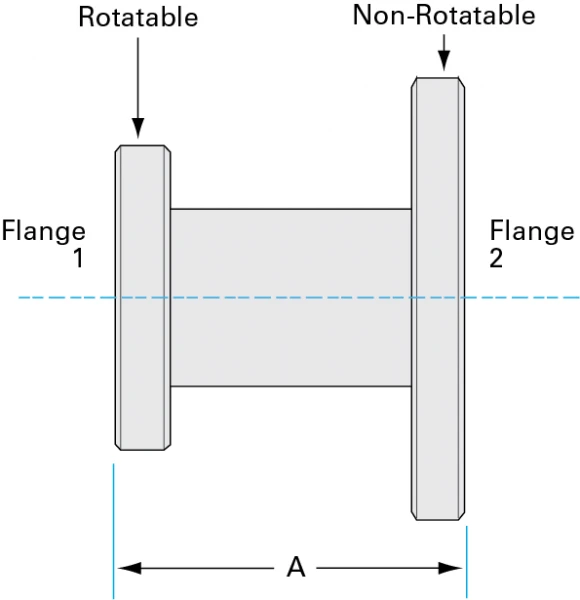

CF-to-ASA-Adapter-Nipples-Dia
Imperial Units
Dim A: 5.00"

Installation Hardware
