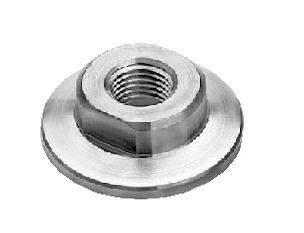

ISO-KF to Pipe Adapter

Part Number: NW-25-1/8-FPTM
Price: $46.35
Quantity:


Features
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
  • Contact us at 800-824-4166 if you can't find exactly what you need
NW-25 to 1/8" Female Pipe Adapter,Machined Threads,OAL .625"
Technical Resources
Specifications
  • Flange Size: DN 25 ISO-KF
  • Adapter Type: Pipe Thread Adapter
  • Fitting: 1/8" Female NPT
  • Flange Material: 304 Stainless
  • Fitting Material: 304 Stainless
  • Length: 0.625"
  • Vacuum Range: 1 · 10-6 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
  • Weight: 0.192 lbs

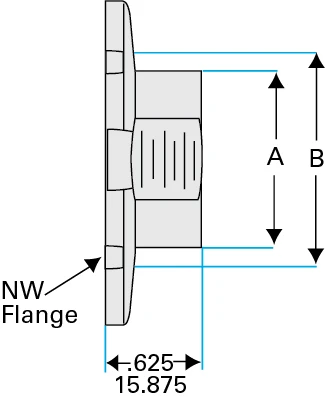

NW-Machined-NW-Female-Pipe-Adapters-Dia
Imperial Units
Dim A: 0.625"
