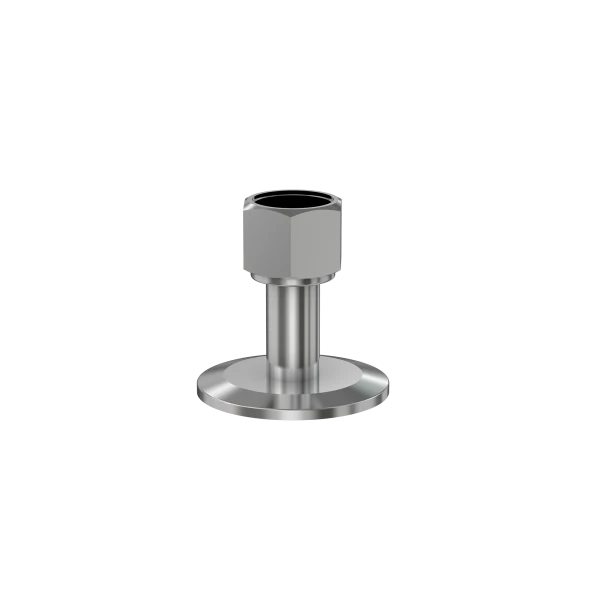

ISO-KF to VCR Adapter

Part Number: NW-10-1/4-FVCR
Price: $65.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
NW-10 to 1/4" FVCR Adapter
Technical Resources
Specifications
  • Flange Size: DN 10 ISO-KF
  • Adapter Type: VCR Adapter
  • Fitting: 1/4" Female VCR
  • Flange Material: 304 Stainless
  • Fitting Material: 316L stainless
  • Length: 1.46"
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 200 °C
  • Weight: 0.141 lbs
NW-Female-VCR-Adapters-Dia
Imperial Units
Dim A: 1.46"
