Home / Vacuum Flanges & Fittings / Adapters & Transitions / Flange-to-Fitting Adapters / CF to QD Adapter
Click to enlarge

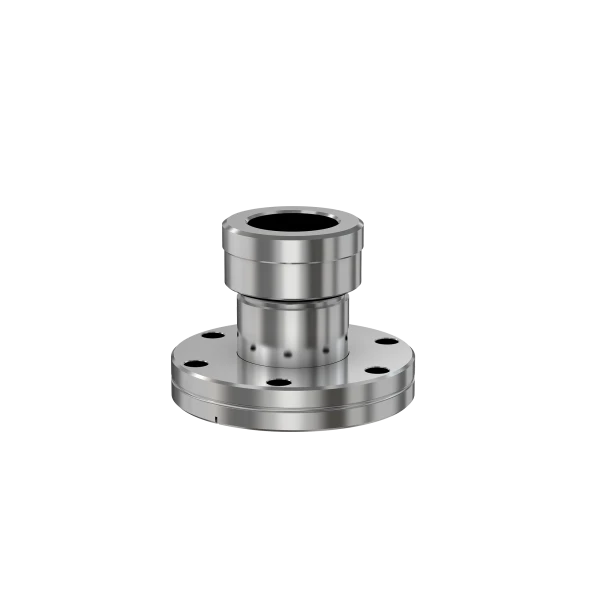

CF to QD Adapter

Part Number: 275-1/4 QD
Price: $115.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
2.75" OD CF to 1/4" Quick Disconnect Adapter
Technical Resources
Specifications
  • Flange Size: DN 40 CF (2.75" OD)
  • Adapter Type: Quick Connect Adapter
  • Fitting: 1/4" QD Fitting
  • Flange Material: 304 Stainless
  • Fitting Material: 316L stainless
  • Length: 1.39"
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
  • Weight: 0.83 lbs
CF-Quick-Disconnect-Adapters-Dia
Imperial Units
Dim A: 1.39"
Dim C: 3/16"
Dim H-1: 1/4"

Installation Hardware
