Click to enlarge

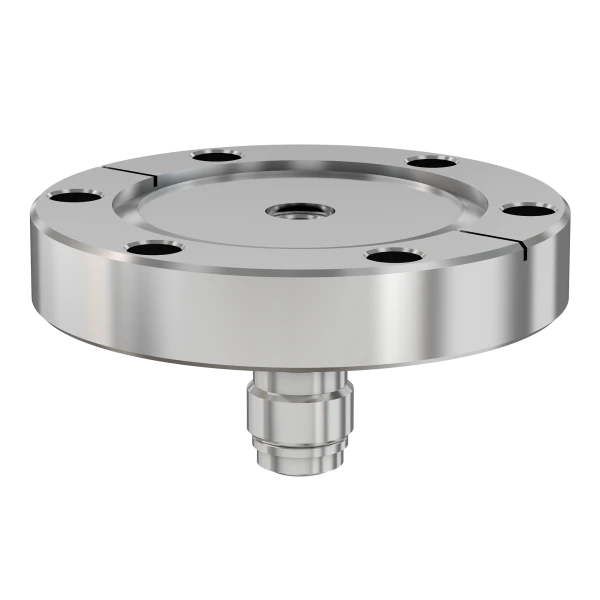

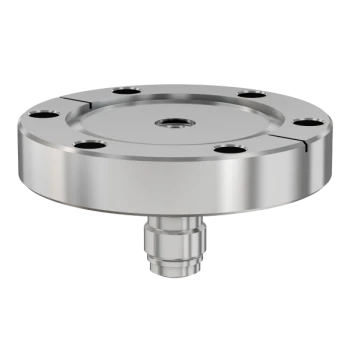

CF to VCR Adapter

Part Number: 275-1/4-MVCR
Price: $99.50
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
2.75" OD CF to 1/4" MVCR Adapter
Technical Resources
Specifications
  • Flange Size: DN 40 CF (2.75" OD)
  • Adapter Type: VCR Adapter
  • Fitting: 1/4" Male VCR
  • Flange Material: 304 Stainless
  • Fitting Material: 316L stainless
  • Length: 1.46"
  • Vacuum Range: 1 · 10-10 mbar to 1 bar
  • Temperature Range: |-20 °C to 200 °C
  • Weight: .83 lbs

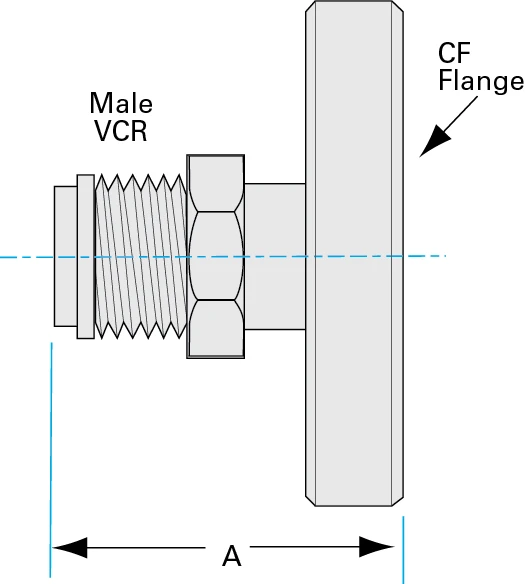

CF-Male-VCR-Adapters-Dia
Imperial Units
Dim A: .46"
