Click to enlarge

CF to VCR Adapter

Part Number: 275-1/4-FVCR

Price: $109.00
Quantity:


Features
Contact us at 800-824-4166 if you can't find exactly what you need
Enables easy joining of two different flanges or fittings
Most popular types & combinations listed

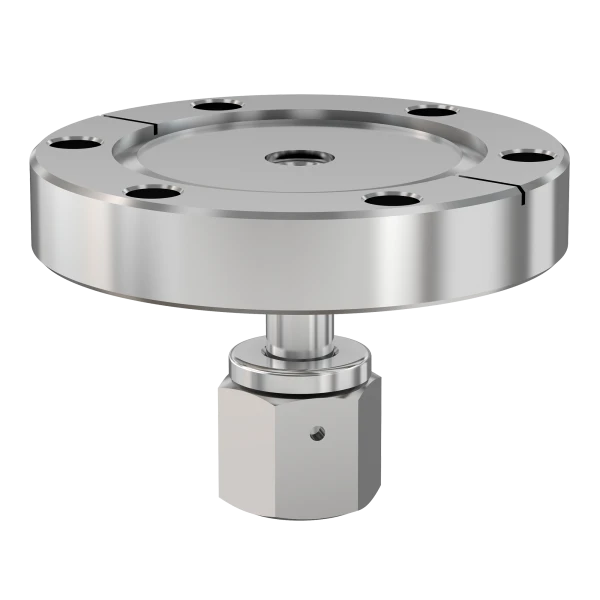

2.75" OD CF to 1/4" FVCR Adapter
Technical Resources
Specifications
Flange Size: DN 40 CF (2.75" OD)
Adapter Type: VCR Adapter
Fitting: 1/4" Female VCR
Flange Material: 304 Stainless
Fitting Material: 316L stainless
Length: 1.36"
Vacuum Range: 1 · 10-10 mbar to 1 bar
Temperature Range: |-20 °C to 200 °C
Weight: .86 lbs
CF-Female-VCR-Adapters-Dia
Imperial Units
Dim A: .36"
