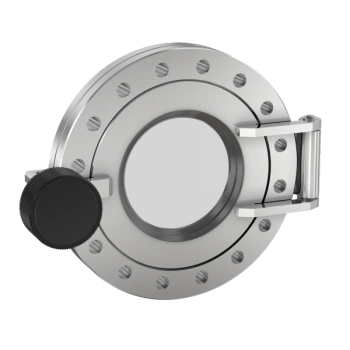

Loadlock Door with Window

Part Number: ADV-1000

  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Specialized materials including sapphire also available
  • Standard windows made with borosilicate glass or quartz
  • Use our Add-a-Doors to create your own system load lock
  • Viewport shutters keep the glass contamination free
10" OD CF Add-a-Door with 7056 Glass Viewport
Technical Resources
  • Loadlock Door Type: with Window
  • Flange Size / Type: DN 200 CF (10" OD)
  • Viewport Material: 7056 glass (Alkali Borosilicate)
  • Door & Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-9 mbar to 1 bar (high vacuum)
  • Temperature Range: |-20 °C to 200 °C
  • Weight: 0 lbs
Imperial Units
Dim A: .88"
Dim B: .968"
Dim C: .60"
