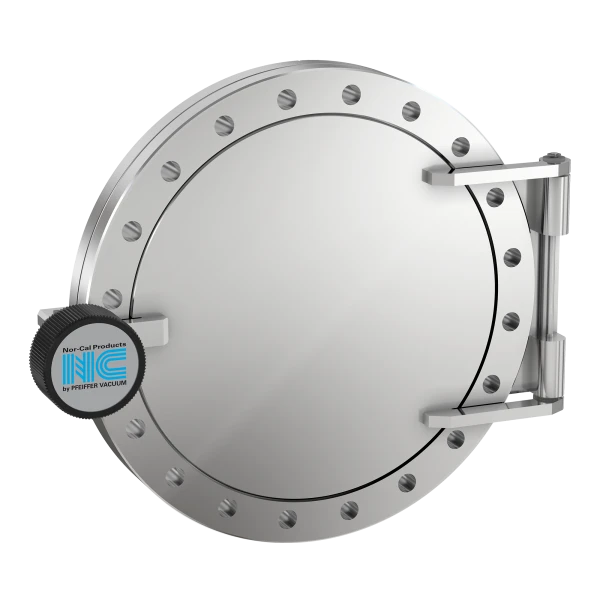

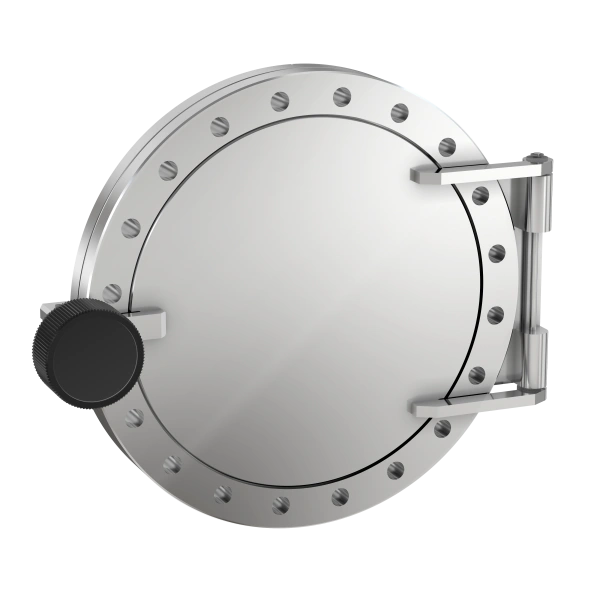

Blank Loadlock Door

Part Number: AD-800

Quantity:

Features

Contact us at 800-824-4166 if you can't find exactly what you need
Specialized materials including sapphire also available
Standard windows made with borosilicate glass or quartz
Use our Add-a-Doors to create your own system load lock
Viewport shutters keep the glass contamination free

8" OD CF Add-A-Door with no Viewport

Technical Resources

Product Spec Sheet

Specifications

Loadlock Door Type: Blank
Flange Size / Type: DN 150 CF (8" OD)
Viewport Material: Blank (no viewport)
Door & Flange Material: 304 Stainless
Vacuum Range: 1 · 10^-9 mbar to 1 bar (high vacuum)
Temperature Range: |-20 °C to 200 °C
Weight: 0 lbs

Ad-A-Door-Dia-A

Dim A: .88"
Dim B: .875"

Installation Hardware

CF Gasket [G-1000-SP]
