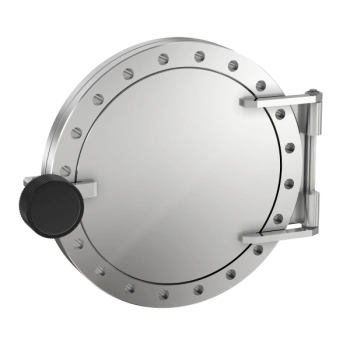

Blank Loadlock Door

Part Number: AD-1000
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Specialized materials including sapphire also available
  • Standard windows made with borosilicate glass or quartz
  • Use our Add-a-Doors to create your own system load lock
  • Viewport shutters keep the glass contamination free
10" OD CF Add-A-Door with no Viewport
Technical Resources
Specifications
  • Loadlock Door Type: Blank
  • Flange Size / Type: DN 200 CF (10" OD)
  • Viewport Material: Blank (no viewport)
  • Door & Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-9 mbar to 1 bar (high vacuum)
  • Temperature Range: |-20 °C to 200 °C
  • Weight: 5 lbs
Ad-A-Door-Dia-A
Imperial Units
Dim A: .88"
Dim B: .968"

Installation Hardware
