ISO-KF Short Neck Flange

Part Number: NW-16F
Price: $10.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Many others available, including a range of 316L material and preps for metric tubing
  • Most common standard lengths and sizes listed
NW-16 Short Weld Neck Flange, w/Weld Prep
Technical Resources
Specifications
  • Flange Size: DN 16 ISO-KF
  • Type: Weld neck, short
  • Material: 304 Stainless
  • Bore: 0.625"
  • Thickness: 0.560"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 0.044 lbs

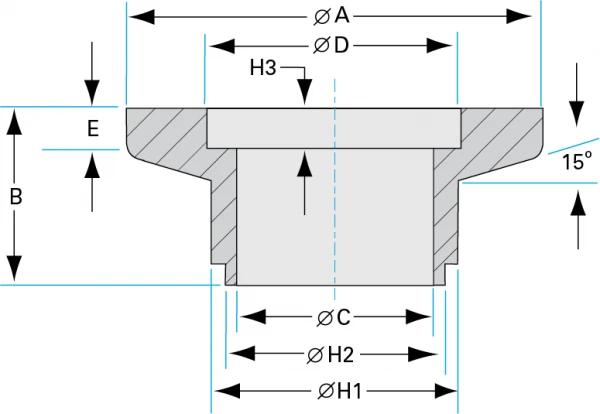

NW-Short-Weld-Neck-Flanges-Dia-B
Imperial Units
Dim A: 1.18"
Dim B: 0.560"
Dim C: 0.625"
Dim H-1: 3/4"

Installation Hardware
