Click to enlarge
View CAD

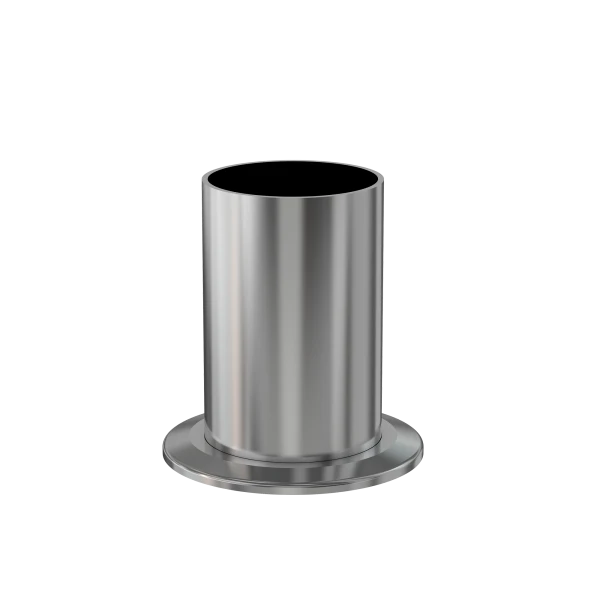

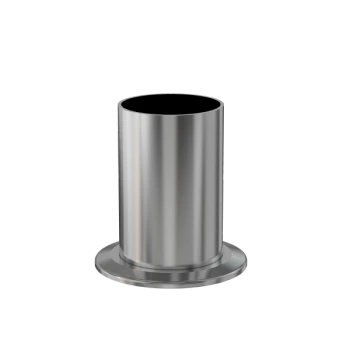

ISO-KF Half Nipple

Part Number: 1N-NW-50B
Price: $34.35

  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Many others available, including a range of 316L material and preps for metric tubing
  • Most common standard lengths and sizes listed
NW-50 Half Nipple
Technical Resources
  • Flange 1: DN 50 ISO-KF
  • Type: Half Nipple
  • Material: 304 Stainless
  • Flange 2: 2" OD Tube
  • Tube OD: 2"
  • Length: 3.15"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 0.56 lbs
Imperial Units

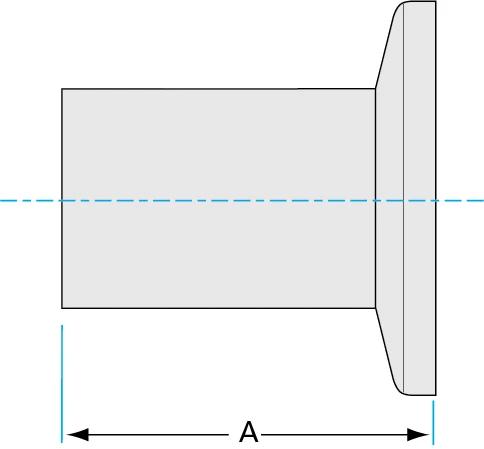

Dim A: 3.15"
