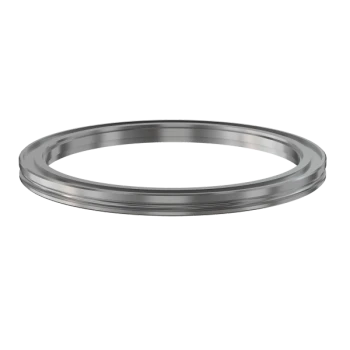

ISO-K Bored Flange

Part Number: ISO-100-400-OF-316L
Price: $112.50
Quantity:


Features
  • ISO-K and ISO-F flanges are manufactured in accordance with DIN 28404 and ISO 1609
  • Most common standard lengths and sizes listed
  • Many others available
  • Contact us at 800-824-4166 if you can't find exactly what you need
ISO-100 x 4" ID OF Bored Flange, 316L SS
Technical Resources
Specifications
  • Flange Size: DN 100 ISO-K
  • Type: Bored
  • Material: 316L stainless
  • Bore: 3.91"
  • Thickness: 0.470"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 1.16 lbs

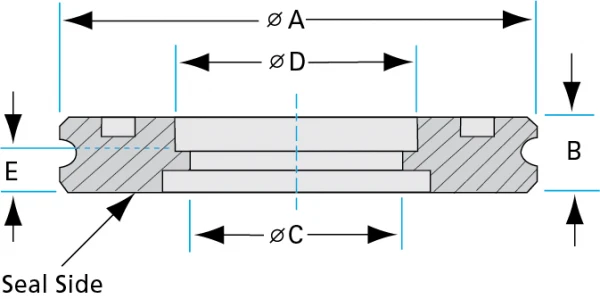

ISO-Optional-Fastener-Flanges-Dia-B
Imperial Units
Dim A: 5.12"
Dim B: 0.470"
Dim C: 3.91"
Dim D: 4.01"
Dim E: 0.250"
