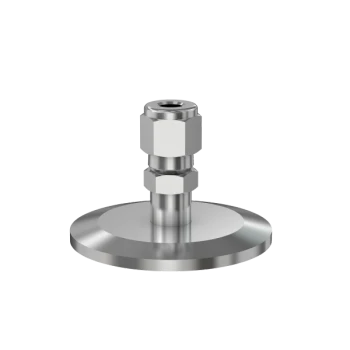

ISO-KF to Swagelok Adapter

Part Number: NW-50-1/4-SWAG
Price: $76.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
NW-50 to 1/4" Swagelok Adapter
Technical Resources
Specifications
  • Flange Size: DN 50 ISO-KF
  • Adapter Type: Swagelok Adapter
  • Fitting: 1/4" Swagelok
  • Flange Material: 304 Stainless
  • Fitting Material: 316L stainless
  • Length: 1.47"
  • Vacuum Range: 1 · 10-6 mbar to 1 bar
  • Temperature Range: -20 °C to 200 °C
  • Weight: 0.45 lbs

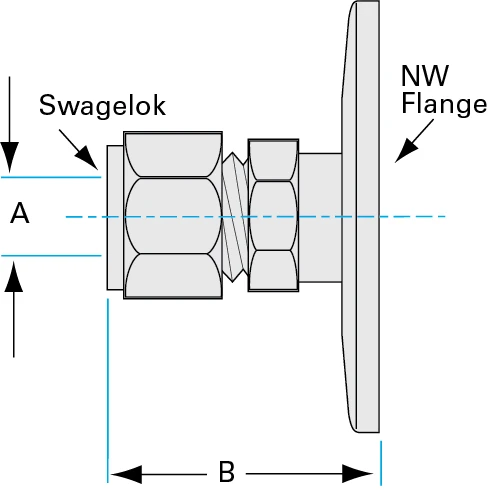

NW-Swagelock-Adapters-Dia
Imperial Units
Dim A: 1.47"
Dim H-1: 1/4"
