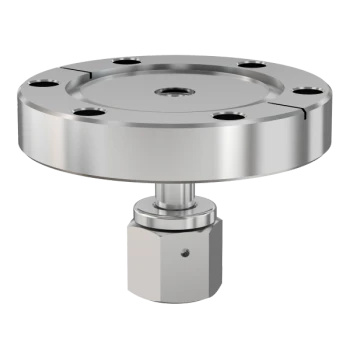

CF to VCR Adapter

Part Number: 133-1/4-FVCR

Price: $87.00

Quantity:

Features

Contact us at 800-824-4166 if you can't find exactly what you need
Enables easy joining of two different flanges or fittings
Most popular types & combinations listed

1.33" OD CF to 1/4" FVCR Adapter

Technical Resources

Specifications

Flange Size: DN 16 CF (1.33" OD)
Adapter Type: VCR Adapter
Fitting: 1/4" Female VCR
Flange Material: 304 Stainless
Fitting Material: 316L stainless
Length: 1.36"
Vacuum Range: 1 · 10^-10 mbar to 1 bar
Temperature Range: |-20 °C to 200 °C
Weight: .182 lbs

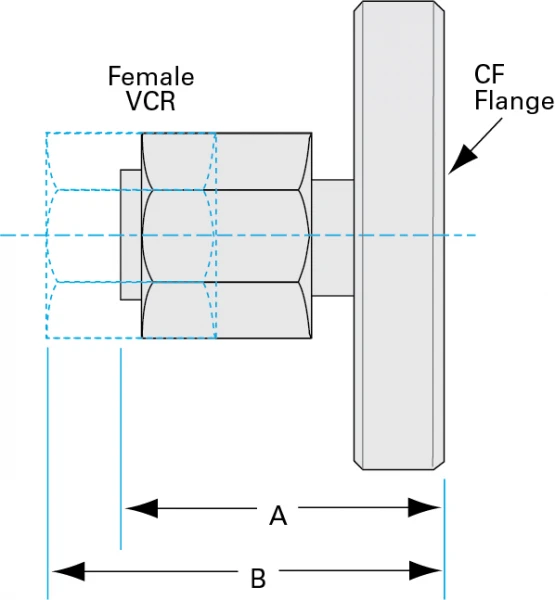

CF-Female-VCR-Adapters-Dia

Dim A: .36"

Installation Hardware

CF Gasket [G-133-SP]
