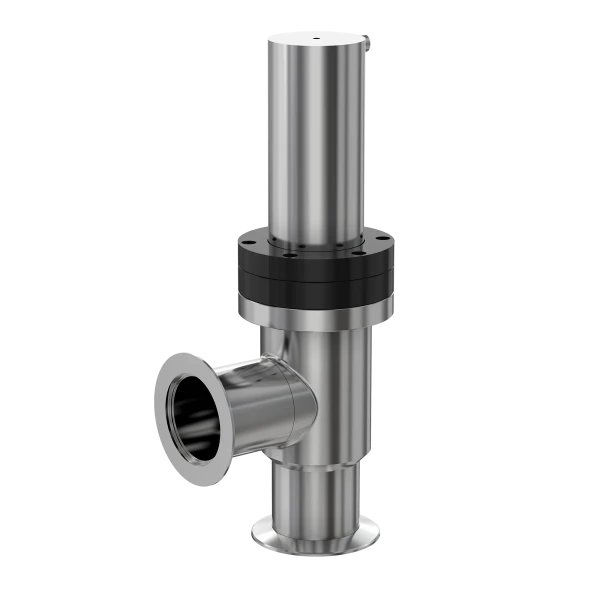

Pneumatic, Double Acting Angle & Inline Valves
The double-acting pneumatic actuation is most often used for valves with longer strokes (valves with larger port diameters). This is because using a spring-assist in either the open or closed direction would necessitate a long actuator to accommodate the spring, making the valve envelope size quite large. “Fail close” or “fail open” functionality can still be achieved via proper selection and plumbing of the pilot valves used.
Simple to install and easy to operate, PV V&E's product offering in this product area has satisfied customers’ expectations for decades and will be sure to fit your requirements today and in the future.
Simple to install and easy to operate, PV V&E's product offering in this product area has satisfied customers’ expectations for decades and will be sure to fit your requirements today and in the future.
Pneumatic, Double Acting Angle & Inline Valves Features
- High open conductance made possible by a fully retractable, edge welded bellows sealed poppet.
- ISO-KF (NW), ISO-K, CF (Conflat) and ASA flange configurations
- Optional position sensors, micro-switches and pilot valves
- Select from rough vacuum, high vacuum and UHV compatible designs
Nor-Cal Products, Inc dba Pfeiffer Vacuum Valves & Engineering offers a wide range of vacuum isolation solutions including angle and in-line valves, linear gate valves, vacuum ball valves, isolation pendulum valves, and bakeable all-metal valves. Our isolation valve range has been an industry standard for decades and continues to be one of the premier choices for many vacuum system designers.
