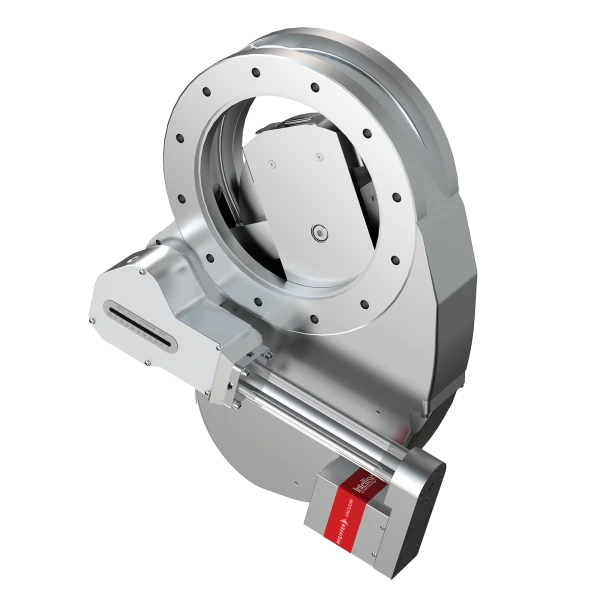

Throttling Pendulum Valve, Anodized

Part Number: TPVP-F133
Quantity:


Features
  • Body can be heated up to 120°C with optional heater jackets
  • Can be operated in any orientation
  • CE marked/fully REACH and RoHS compliant
  • High reliability, low particle generation
  • Space saving, low cost design
TPV,NO CONTROLLER,HA,DN320,ISO-F
Technical Resources
Specifications
  • Valve / Flange Size: DN 320 ISO-F
  • Finish: Hard Anodized
  • Flange Size / Type: DN 320 ISO-F
  • Supply Voltage: Provided by BQC 800-Series Controller
  • Power Connector: D-sub, 15-pin, male plug
  • Pressure Range: 3.8 · 10-8 mbar to 1.1 bar
  • Max Differental at Opening: 39 mbar
  • Max Temp (body): 150 °C
  • Temp. Limits (actuator): 5 °C (minimum), 45 °C (maximum)
  • Open / Close Time: 6.5 s/5.5 s
  • Open Conductance: 30000 l/s
  • Min. Control Conductance: 0.1 l/s
  • Material (valve body): A356 Aluminum, Hard anodized
  • Material (valve mechanism): 304 Stainless & 6061-T6 Aluminum, Hard anodized
  • Gate Seal: FKM
  • Bonnet Seal: FKM
  • Leak Rate (body): 1 · 10-9 mbar l/s
  • Leak Rate (gate): 1 · 10-6 mbar l/s
  • Service Life: 1 million cycles
  • Weight: 120.56 lbs
  • Bolt Hole Thread: M12
  • Thread Depth: 0.709"
  • # Bolt Holes: 12
TPVP_dimension_drawing
Imperial Units
Dim A: 4.84"
Dim B: 4.09"
Dim D: 22.8"
Dim E: 12.0"
Dim F: 11.7"
Dim G: 15.6"
Dim H: 10.6"

Replacement Parts & Accessories

Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.
Valve Motor Cable, 10'
Valve Motor Cable, 10'
TBV-CRD-10
$90.00
Quantity:
Valve Motor Cable, 20'
Valve Motor Cable, 20'
TBV-CRD-20
Quantity:

Installation Hardware
