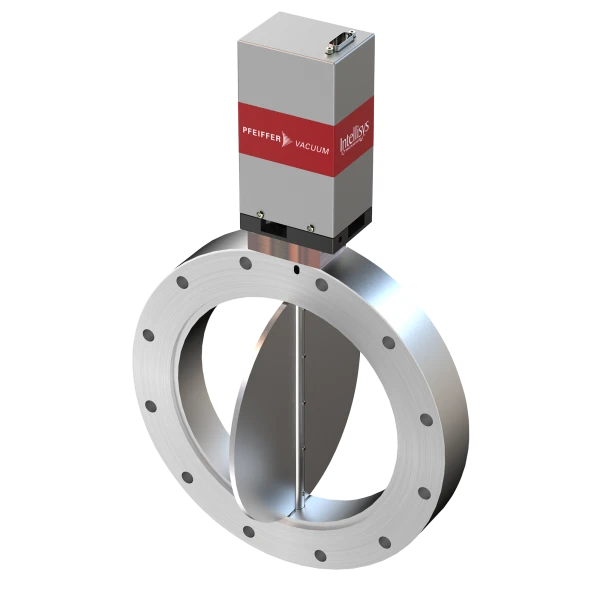

Throttling Butterfly Valve, Direct Drive

Part Number: TBVPD-L063
Quantity:


Features
  • Body can be heated up to 200ºC with optional heaters
  • Can be operated in any orientation
  • CE marked/fully REACH and RoHS compliant
  • High reliability, low particle generation
  • Space saving, low cost design
TBV+,DIRECT,316L,DN63,ISO-F
Technical Resources
Specifications
  • Valve / Flange Size: DN 63 ISO-F
  • Flange Size / Type: DN 63 ISO-F
  • Supply Voltage: Provided by BQC 200-Series Controller
  • Power Connector: D-sub, 15-pin, male plug
  • Pressure Range: 1 · 10-8 mbar to 1.1 bar
  • Max Differental at Opening: |1100 mbar
  • Max Temp (body): |150 °C
  • Temp. Limits (actuator): 5 °C (minimum), 45 °C (maximum)
  • Open / Close Time: 5 ms/125 ms
  • Open Conductance: 0 l/s
  • Min. Control Conductance: 5 l/s
  • Material (valve body): 6L Stainless Steel
  • Material (valve mechanism): 6L Stainless Steel
  • Plate Seal: ne
  • Shaft Seal: M
  • Leak Rate (body): · 10-9 mbar l/s
  • Service Life: illion cycles
  • Weight: 6 lbs
  • Bolt Hole Dia.: 59"
  • # Bolt Holes:
Imperial Units
Dim A: 2"
Dim B: 3"
Dim C: 54"
Dim D: 3"
Dim E: 0"
Dim F: 0"
Dim G: 4"
Dim H: 7"
Dim J-1: 0"
Dim J-2: 7"
Dim K: 6"
Dim L: 6"
