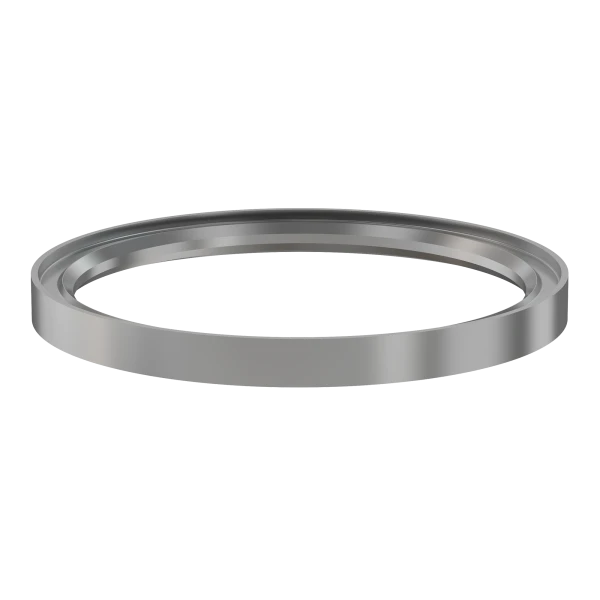

EVAC Seal w/ Outer Ring

Part Number: 34.142.150-AZ

Quantity:

Features

Chain clamps convenient in tight spaces, even for standard ISO-KF flanges
Contact us at 800-824-4166 if you can't find exactly what you need
Convert ISO-KF elastomer sealed systems to UHV service using EVAC seals
Ensure reliable sealing with higher compression forces

DN 50 EVAC Seal w/ Outer Ring

Technical Resources

Specifications

Product Type: Aluminum Metal Seal
Fits Flange Size: DN 50
Material: Aluminum
Select Feature: Outer Centering Ring
Weight: 0.023 lbs

EVAC-AL-Metal-Seals-Dia-A

Dim A: 2.95"
Dim B: 0.276"
Dim C: 2.56"
Dim D: 0.157"
Dim E: 0.175"
