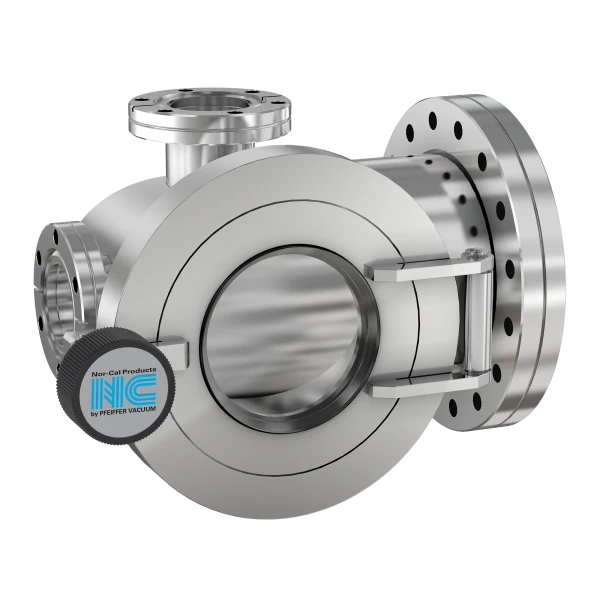

Sample Transfer Loadlock Chamber

Part Number: LL-600-ADV-150-3

Quantity:

Load Lock Chamber

Technical Resources

Product Spec Sheet

Specifications

Product Type: Load Lock Chamber
Base Flange: DN 100 CF (6" OD)
Access Door: DN 100 CF (6" OD)
Pump & Gauge Ports (3X): DN 40 CF (2.75" OD)
Vacuum Range: 1 · 10^-8 mbar to 1 bar (high vacuum)
Temperature Range: |-20 °C to 200 °C
Chamber Material: 04 Stainless
Window Material: 056 glass (Alkali Borosilicate)
Seal Material: KM
Weight: 5 lbs

Load-Lock-Chamber-Dia
