Sealed Coaxial Copper Sieve Traps

Part Number: CT-4-0752-NWB-CS

  • Call us at 800-842-4166 to learn more about foreline contamination management
  • Choose a trap for particles, moisture, condensable chemicals or any combination thereof
  • Wide range of trap styles and techniques

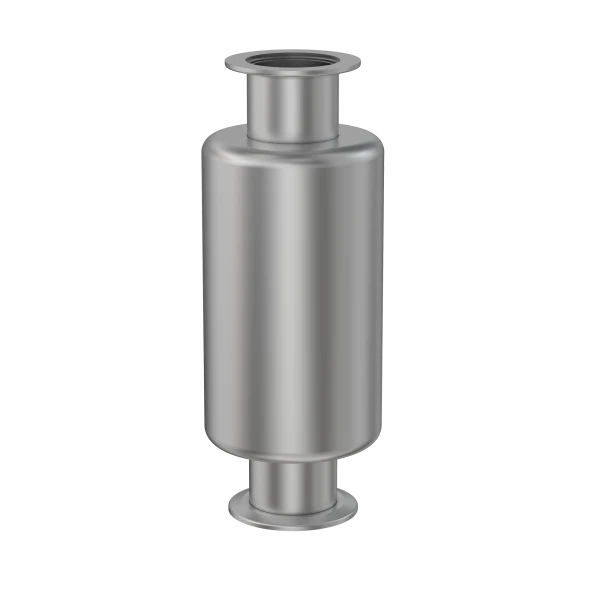

NW-16 Sealed Coaxial Metal Sieve Trap, 4" Body
Technical Resources
  • Trap Type: Metal Sieve Trap
  • Sieve Material: Copper
  • Port Orientation: Coaxial
  • Flange Size / Type: DN 16 ISO-KF
  • Trap Body Size: 4" OD
  • Body Material: 304 Stainless
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 180 °C
  • Weight: 6 lbs
Imperial Units
Dim A: 10.3"
Dim C: 4"
