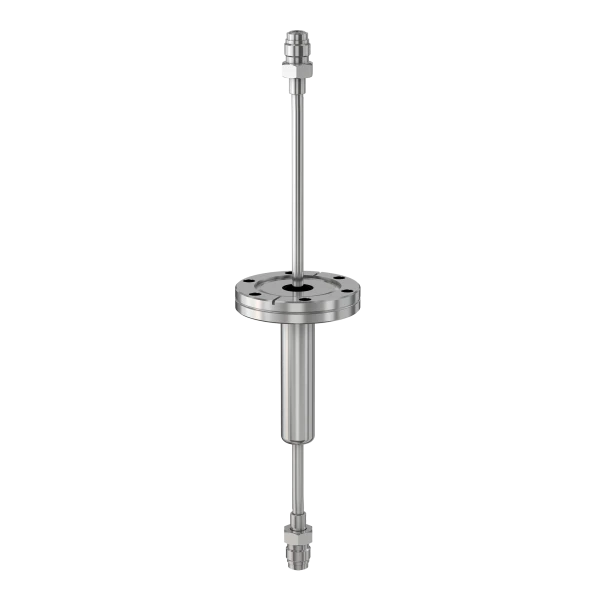

Liquid Nitrogen (LN2) Feedthrough

Part Number: LNF-150-1-025-2MVCR
Price: $368.00
Quantity:

2.75" OD CF Single Liquid Nitrogen Feedthrough, 1/4" MVCR Fitting
Technical Resources
Specifications
  • Feedthrough Type: Liquid Nitrogen
  • Flange Size / Type: DN 40 CF (2.75" OD)
  • # Feedthroughs: One
  • Feedthrough Tube Termination: 1/4" VCR male
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: -270 °C to 450 °C
  • Weight: 0.5 lbs
Single-Liquid-Nitrogen-Feedthroughs-Dia
Imperial Units
Dim A: 6.53"
Dim B: 4.53"
Dim E: 0.250"
