Liquid & Gas Feedthrough

Part Number: LFT-NW-40-1-025-2MVCR
Price: $368.00
Quantity:

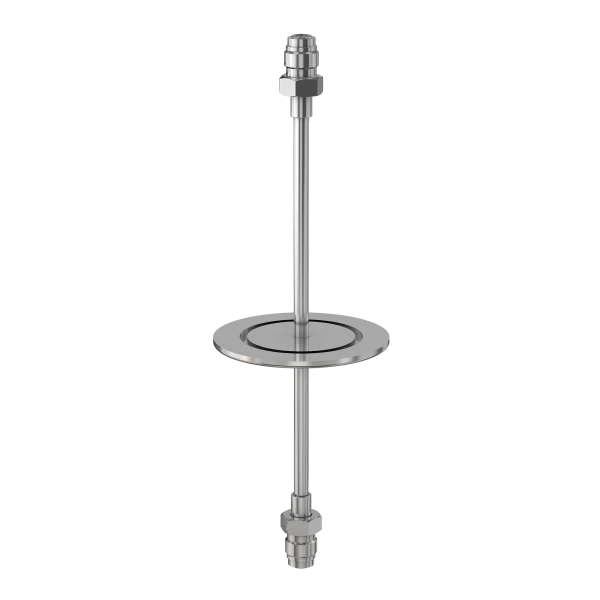

NW-40 Single Liquid Feedthrough, 1/4" MVCR Fitting
Technical Resources
Specifications
  • Feedthrough Type: Liquid & Gas
  • Flange Size / Type: DN 40 ISO-KF
  • # Feedthroughs: One
  • Feedthrough Tube Termination: 1/4" VCR male
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-8 mbar to 1 bar (high vacuum)
  • Temperature Range: -20 °C to 200 °C
  • Weight: 0.5 lbs
Single-Liquid-Dia
Imperial Units
Dim A: 4.03"
Dim B: 5.03"
Dim E: 0.250"
