ISO-KF to ASA Straight Adapter Nipple

Part Number: AN-NW-40-ASA-9-G

Price: $223.97

Quantity:

NW-40 to 9" OD ASA (w/groove) Straight Adapter Nipple

Features

Contact us at 800-824-4166 if you can't find exactly what you need
Enables easy joining of two different flanges or fittings
Most popular types & combinations listed

Specifications

Flange 1: DN 40 ISO-KF
Adapter Type: Straight Adapter
Flange 2: DN 4 (9" OD)
Material: 304 Stainless
Tube OD: 1-1/2"
Port Length: 2.00"
Vacuum Range: 1 · 10^-8 mbar to 1 bar
Temperature Range: -20 °C to 150 °C

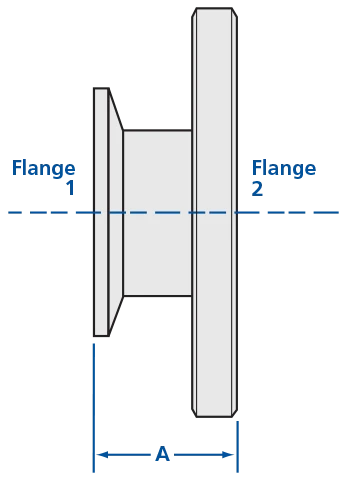

NW-to-ASA-Adapter-Nipples-Dia
