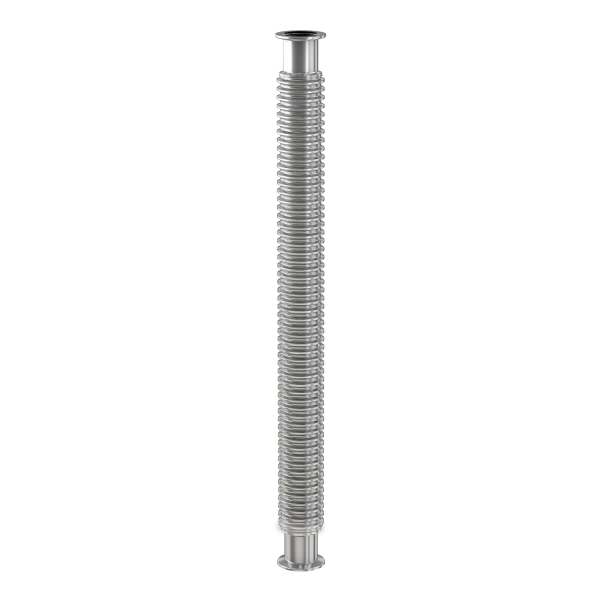

ISO-KF Thin Wall Flexible Hose

Part Number: LH-200-40-2NW

Price: $408.00

Quantity:

NW-50 Thin Wall SS Flexible Hose, 40" Length

Features

Dampen out pump vibrations with a flex coupling
Easily join two mis-aligned ports using a flex hose
Standard lengths and flange combinations offered. Others available.
Thin, medium and thick wall hoses offer a range of flexibility and robustness

Specifications

Flange Size: DN 50 ISO-KF
Type: Flexible Bellows Hose
ID: 2"
Length: 40"
Wall Thickness: 0.006"
Bend Radius: 7.5"
Hose Material: 321 stainless
Flange & Cuff Material: 304 Stainless
Vacuum Range: FKM: 1 · 10^-8 mbar to 1 bar
Metal seal: 1 · 10^-10 mbar to 1 bar
Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -270 °C to 150 °C

NW-Flexible-Stainless-Steel-Hose-Thin-Wall-Dia
