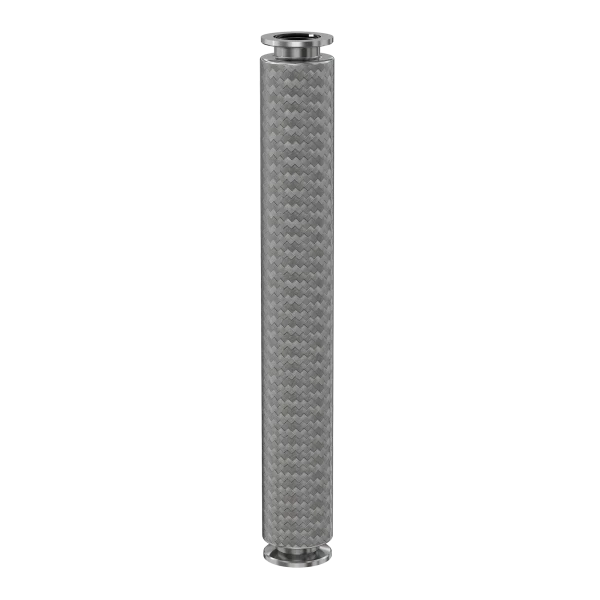

ISO-KF Braided Flexible Hose

Part Number: FHB-100-10-2NW
NW-25 Flexible Stainless Steel Braided Hose, 10" Length

  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Dampen out pump vibrations with a flex coupling
  • Easily join two mis-aligned ports using a flex hose
  • Standard lengths and flange combinations offered. Others available.
  • Thin, medium, and thick wall hoses offer a range of flexibility and robustness
  • Flange Size: DN 25 ISO-KF
  • Type: Braided Flexible Hose
  • ID: 1"
  • Length: 10"
  • Weight: 0.58 lbs
  • Wall Thickness: 0.008"
  • Hose Material: 316 SS
  • Flange & Cuff Material: 304 SS
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Bend Radius: 2.1"
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
Imperial Units
Dim A: 10"
Dim B: 2.5"
Dim C: 1"
Dim D: 1-5/8"
Dim E: 0.008"
