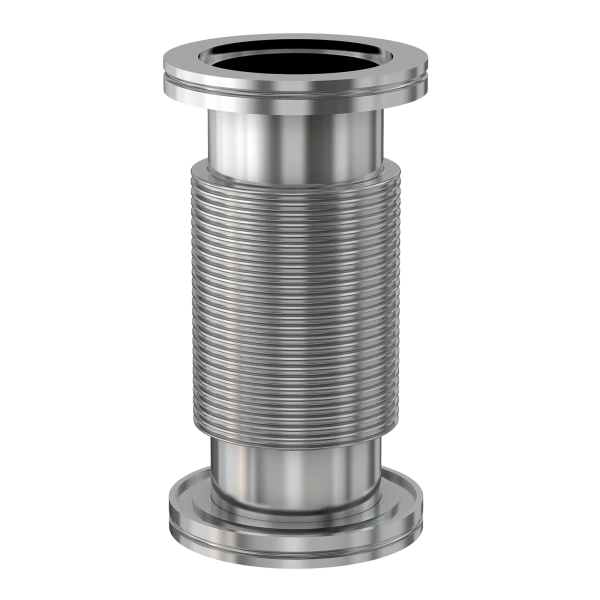

ISO-K Flexible Coupling

Part Number: 2FC-ISO-400-10

Quantity:

ISO-100 OF Flexible Coupling, 10" Free Length

Features

Dampen out pump vibrations with a flex coupling
Easily join two mis-aligned ports using a flex hose
Standard lengths and flange combinations offered. Others available.
Thin, medium and thick wall hoses offer a range of flexibility and robustness

Specifications

Flange Size: DN 100 ISO-K
Type: Flexible Coupling
ID: 4"
Length: 10"
Wall Thickness: 0.010"
Hose Material: 321 stainless
Flange & Cuff Material: 304 Stainless
Vacuum Range: FKM: 1 · 10^-8 mbar to 1 bar
Metal seal: 1 · 10^-10 mbar to 1 bar
Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -270 °C to 150 °C

ISO-Flexible-Couplings-Dia
