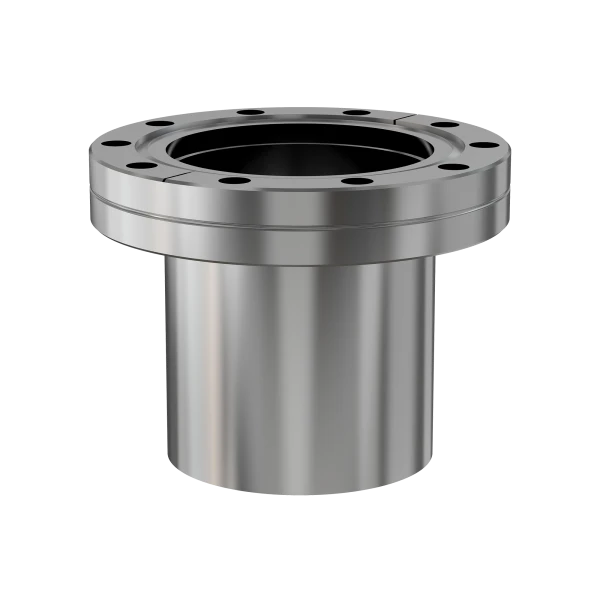

CF Half Nipple

Part Number: 1N-250V
Price: $120.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Most popular sizes and types listed
  • Rotatable flanges make component alignment easy
  • The CF flange system is ideal for UHV system construction
4.50" OD CF Half Nipple, Extended Port
Technical Resources
Specifications
  • Flange 1: DN 63 CF (4.5" OD)
  • Type: Half Nipple
  • Flange 2: 2-1/2" OD Tube
  • Material: 304 Stainless
  • Tube OD: 2-1/2"
  • Length: 4.12"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 2.5 lbs
CF-Half-Nipples-Dia
Imperial Units
Dim A: 4.12"

Installation Hardware
