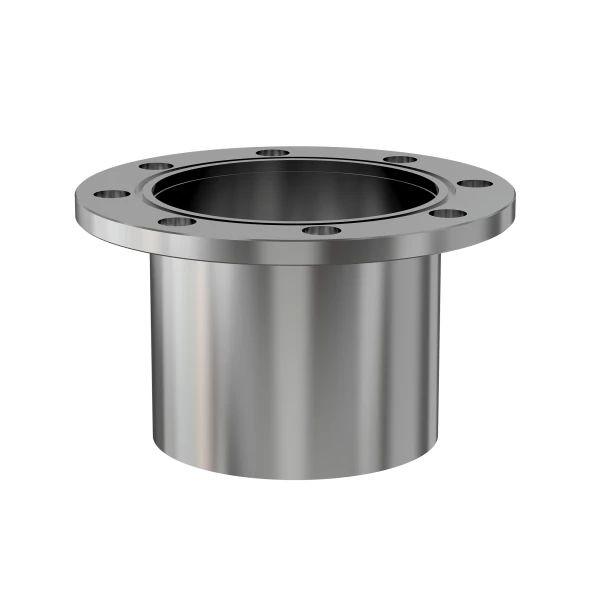

ASA Half Nipple

Part Number: 1N-ASA-9-400-G
Quantity:


Features
  • All products are available with both genders or a combination
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • One each flat and grooved flange is needed to complete a connection
9" OD X 4" ID ASA Half Nipple w/Groove
Technical Resources
Specifications
  • Flange 1: DN 4 (9" OD)
  • Type: Half Nipple
  • Flange 2: 4" OD Tube
  • Material: 304 Stainless
  • Tube OD: 4"
  • Length: 4.13"
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: |-20 °C to 150 °C
  • Weight: lbs
ASA-Half-Nipples-Dia
Imperial Units
Dim A: .13"
