Click to enlarge
View CAD

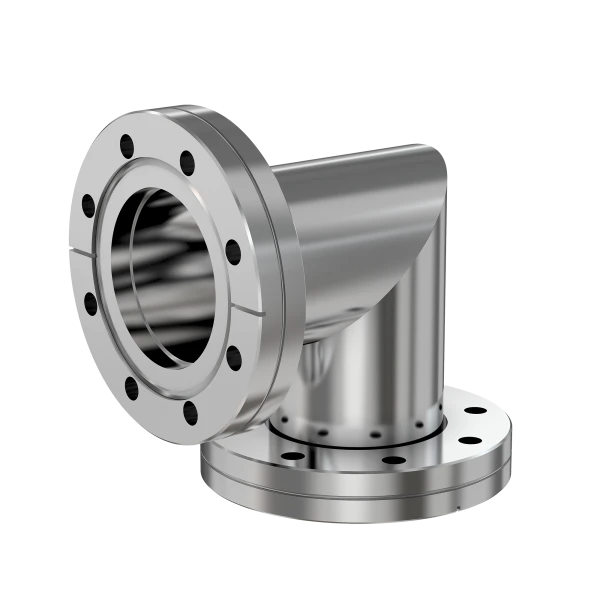

CF 90 Mitered Elbow

Part Number: 2E-600MV
Price: $912.00

  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Most popular sizes and types listed
  • Rotatable flanges make component alignment easy
  • The CF flange system is ideal for UHV system construction
8" OD CF Mitered 90-Degree Elbow, Extended Port
Technical Resources
  • Flange Size: DN 160 CF (8" OD)
  • Elbow Type: Miter 90 Degree
  • Material: 304 Stainless
  • Tube OD: 6"
  • Port Length: 6.56"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 15.9 lbs
Imperial Units
Dim A: 6.56"
